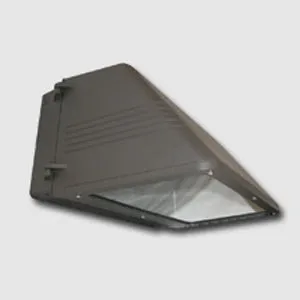

Techlight LWPF Large Forward Throw Cutoff Wall Pack
Application
The DCM Medium Die Cast Area Light is designed for general-purpose area lighting. It is the perfect choice for lighting large open areas for safety and security. Wide roadway applications, parking areas, or even wall mount applications for security lighting are all suitable applications for this fixture. The medium size and multiple mounting options make this fixture economical and versatile.
Construction
Constructed with a full cutoff die cast aluminum housing. A tempered clear glass lens protects the optical system. Gasketed side hinge door for a weatherproof seal. Stainless steel hardware. ETL listed for wet locations.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
Made for higher mounting heights ranging from 18 to 25. Two piece pinged aluminum reflector. Tempered glass lens. The fixture is a full cut-off light fixture and is Star Light Friendly.
Electrical System
Provided with a medium base 4KV pulse rated socket. Fixtures are available with with up to 175W Metal Halide or 150W High Pressure Sodium, and 42W Fluorescent light sources. Wall Packs come with an option of Multi-Tap1 (120V, 208V, 240V, 277V), 480V high power factor ballasts, 120V NPF ballasts, or 120V Fluorescent ballasts depending on the light source and wattage chosen.
Mounting
Built in template for mounting to electrical boxes. Threaded 1/2" NPT knockouts provided on the side and rear of fixture.
Note: High Pressure Sodium lamps are steadily being discontinued and becoming less common. Please consult the factory for availability of High Pressure Sodium models.
